Engineering Specification Kit
Evaluate and prototype the charging modules before production
A bench-ready EV charger development kit that pairs the MantaRay controller and EEL AC controller with the supporting components, wiring diagrams and a working reference model. Prove your smart charger design and de-risk your investment before committing to production.
Overview
The fastest way to try the charging modules
The Engineering Specification Kit is the ideal starting point to evaluate an EV charger built from our charging modules. It gives you a working smart charger on the bench - controller, AC control, metering, authentication and status indication - so you can test your assumptions and find the best configuration for your requirements.
We start by understanding your requirements, consider which of our charging modules can accelerate your development, then help you scope the bespoke software development and hardware design needed to complete your solution - clarifying what it takes to realise your design and de-risk both your initial and ongoing investment.

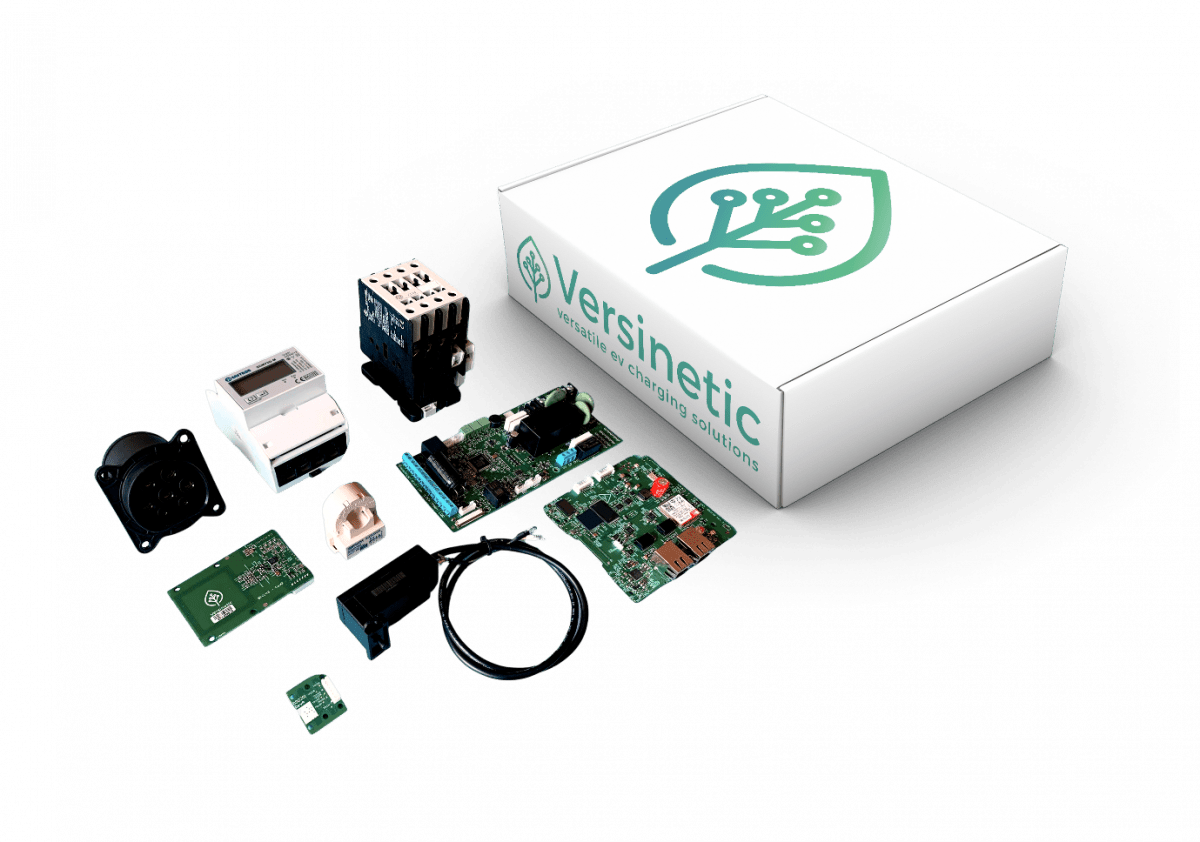

What is included
- MantaRay smart charge controller and EEL AC charge controller
- Wiring diagrams and an instruction manual
- A working reference model to set up your production and test connectivity
- One day of engineering support, with further support available on request
What you get

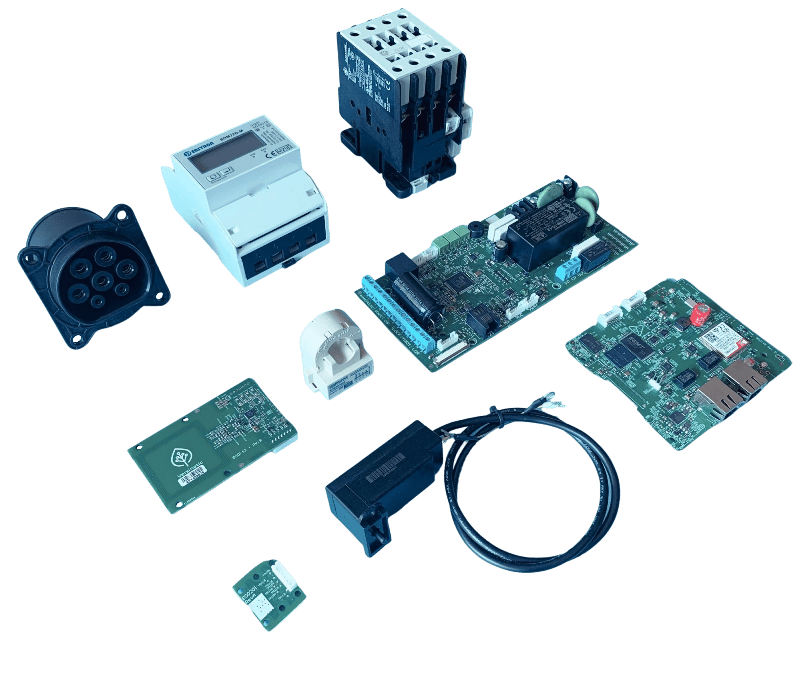

Everything to build a working AC charger
The kit contains the controllers and supporting components needed to assemble a complete AC charging cycle on the bench - the same building blocks you would carry through into a production design.
MantaRay
The smart charge point communications controller at the heart of the kit - connectivity, authentication, metering and protocol compliance on one board.
EEL
The compact AC charge controller, so you can exercise a full AC charging cycle alongside MantaRay from day one.
4-pole contactor
A single 4-pole contactor to switch the charging supply, wired into the reference build.
RFID reader board
ISO/IEC 14443A and MIFARE Classic smart card reader for testing identification and authorisation flows.
RDC-DD leakage sensor
6 mA DC residual current sensor to prototype fault detection as part of the charging safety chain.
RGB status LED board
A single RGB status LED board to develop and demonstrate the charger state indication.
Type 2 socket + lock
An IEC 62196 Type 2 socket with socket lock, so you can prove the physical connection and locking behaviour.
3-phase MID meter
A three-phase MID-approved energy meter for accurate, billable energy measurement in your prototype.
Who it is for
Built for teams de-risking charger development
The Engineering Specification Kit is designed for software engineers reducing R&D risk and fast-tracking their charging application development - and for product teams that need to prove a concept before committing to a full build.
Software engineers reducing R&D risk
Purpose-built for engineers tasked with cutting development risk and fast-tracking IoT charging applications - a proven starting point instead of a blank sheet.
Product teams scoping a new charger
Clarify your product plans and turn ideas into concrete smart charging design concepts, so you understand exactly what is required to realise your design.
OEMs evaluating the charging modules
Assess how MantaRay, EEL and the wider charging modules fit your intended charger before committing budget to a full development programme.
How it de-risks development
Prove the design before you spend on production
The kit turns open questions into tested answers. By exercising a real charger on the bench, you shorten time to market and cut the cost and risk of finding problems late in a production programme.
01
Prototype before you commit
Evaluate the charging modules on the bench and discover the best configuration for your requirements - de-risking your initial and ongoing investment decisions before production spend.
02
Hardware and software under one roof
Versinetic software and hardware teams work side by side, so the kit reflects a coherent, tested combination rather than parts you have to integrate blind.
03
A clear path to production
We start from your requirements, identify which charging modules accelerate your project, then scope the bespoke software development and hardware design needed to complete your solution.
04
Expertise on hand
Draw on experience bringing charging products to market - guidance through product compliance, regulations and EMC testing as your design matures.
05
Your product, your brand
Versinetic EV charging hardware and software is fully customisable with your branding, so the prototype maps directly onto the product you intend to ship.
06
Support that stays with you
A working model, wiring diagrams and included support get you connected quickly, with the option to extend engineering support as the project grows.
07
Over-the-air updates
No site visits are required for software updates to your system - updates are delivered over the air, and new features are added regularly.
08
The security of consistency
You are assigned your own experienced project manager and engineer, who then stay with you throughout the full design process.
Charging modules
The building blocks inside the kit
OCPP · Controller
MantaRay
Smart charge point communications controller - the core of the kit.
IEC 61851 · AC Controller
EEL
Compact AC charge point controller for the AC charging cycle.
OCPP 2.0.1 · Software
OCPP Library
Standards-based OCPP 2.0.1 library ready to embed in your product.
Load Balancing · Platform
SiteManager
Manage and monitor charge points once your design moves into deployment.
