EEL EV AC Charge Controller

Our EVSE product, EEL, is an integrated printed circuit board (PCB) that works as the real time interface for your charge point, delivering energy directly to an electric vehicle’s battery.



EEL IEC61851 EVSE AC Charge Controller

A charging station can have multiple copies of our EVSE, depending on the intended volume of electric vehicles or size of your EV fleet.



EEL specifically forms the part of the charging station that delivers energy to the electric vehicle.



EEL can be adapted for a number of functionalities, inclusive of: temperature (thermometer); accelerometer; IR movement detector; RFID reader (contactless payment); speaker; LEDs; LCD display screen and lock pin control for charger connection.

EEL EV AC CHARGE CONTROLLER

EEL Diagram_2023

Learn More About EEL EV AC Charge Controller

EEL GENERAL SAFETY CHECKS

Over Current

EEL stops charging if car pulls more current than is allowed for 20s.

Factory Charge Limit

The factory defines the maximum current that the configuration is capable of – EEL won’t offer more than this amount to the car.

Tilt

EEL stops charging if the device goes off normal by a configurable number of degrees i.e., damage to device.

RDC-DD 6mA

EEL stops charging if there is a DC current going into earth, then immediately switches off, i.e., user accidental electrocution.

Temperature

Socket & EEL Over Temp – Both checks will stop charging if the threshold is exceeded of a configurable temperature.

AC Power

EEL stops charging if AC checks or PME are triggered, including: over & under voltage, earth disconnect, live on neutral and live on neutral swap.

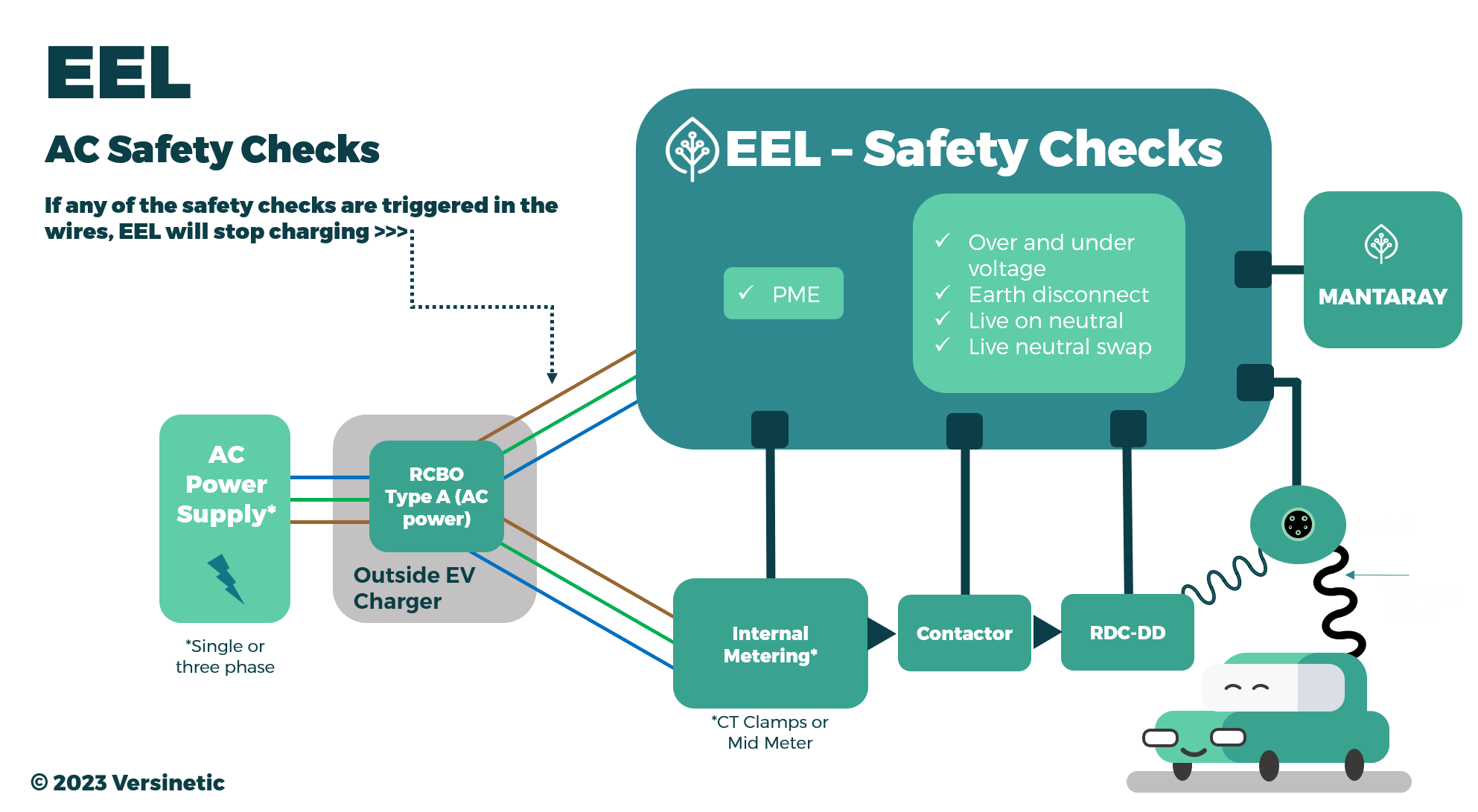

EEL AC SAFETY CHECKS

EEL has some inherent safety procedures that it performs before and during charging. These are to both to protect the user and the vehicle

  • As part of the installation EEL will report if it believes any of the power circuitry is wired wrong, such as live has been swapped with neutral.
  • During operation EEL will check for: PME break; whether there is live on neutral; and that the voltage supply into EEL is within a nominal range.
  • Before charging EEL will perform a RDC-DD test on the hardware.
  • Throughout charging, EEL periodically tests for an RDC-DD 6mA leak.
